NetWay4E1BTWP

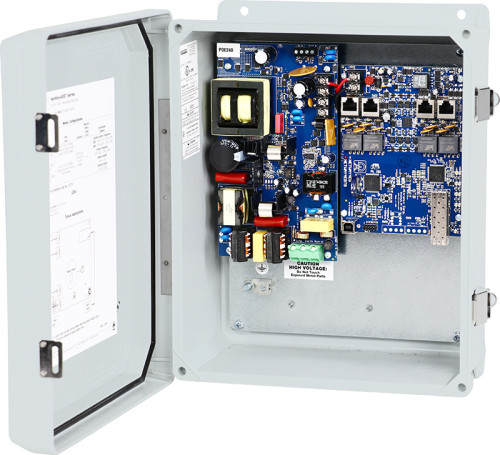

4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.

Altronix NetWay4E1BTWP supports up to 90W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with one (1) 1Gb SFP port to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWP accommodates single/multi-mode fiber to deliver data from NetWay Spectrum head-end media converters/injectors.

  • Input
    • Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A.
    • Fusing: 5A/250V.
  • Power Output
      • Maximum Power:
        • Four (4) PoE ports rated at 90W each, 240W total power.
        • IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant.
        • Integral surge protection.
  • SFP Ports
    • One (1) Gigabit SFP port.
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or higher structured cable.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Type: 24VDC charging circuit charges LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type batteries (require separate ventilated enclosure)
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Temperature
      • Operating:
        • 240W: – 30ºC to 55ºC (– 22ºF to 131ºF).
        • 180W: – 30ºC to 65ºC (– 22ºF to 149ºF).
        • 150W: – 30ºC to 75ºC (– 22ºF to 167ºF).
    • Storage: – 30ºC to 85ºC (– 22ºF to 185ºF).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 10.32 Lbs. (4.68 kg).
  • Shipping Weight: 11.7 Lbs. (5.3 kg).
